Blue Roofing Sheet Crimping Machine , Automatic Curving Roll Forming Machine

hebei feixiang roll forming machinery co,ltd;
Contact Now

Blue Roofing Sheet Crimping Machine , Automatic Curving Roll Forming Machine

  • 1
  • 2

Brand Name : FEIXIANG

Model Number : Metal Sheet Crimp Sheet Curving Roll Forming machine equipment

Certification : CE ISO,

Place of Origin : China

MOQ : 1 sets

Supply Ability : 20 SETS/MONTH

Delivery Time : 45 working days

Packaging Details : 40'GP

Price : Price pls consult with supplier

Normal thickness : 0.3-0.6mm

Type : metal roof roll forming machine

Control : Delta Siemens

Voltage : 380V/220 /440 50HZ,3PH

Warrantee : 1 year

Driving : Electrical motor

After-sales : Engineer installing

Contact Now

Metal Sheet Crimp Sheet Curving Roll Forming machine equipment

1. Product Description

Metal Sheet Crimp Sheet Curving Forming machine is the special equipment for for bello lin for Roof Panel is composed by the following elements in the table. And for some of the elements you can change according to your needs. For the steel roll forming machine, take a random drawing profile for your reference.

2. Machine details

Brand: Feixiang
Model number:
Metal SteelSingle Layer steel Roof Plate Iron Sheet Tiles Cold Sheet Making Machine
Voltage requirement: 380v50HZ,3PH
Working speed:8-10/min

Input Details Profile Sheet
Raw Material Color Steel ,PPGI OR GI
Thickness 0.35mm-0.70mm
Strip /Coil Width 1000-1250
Technical Details
Station 4 Stations Spacer need same color with rollers.
Roller Material 45#
Shaft 45#
Shaft Diameter 80mm
Weight 1.3T
Beam Height 450
Hydraulic Systems
Hydraulic Oil Pump Yuken
Hydraulic Oil Tank Self Made
Tank oil Capacity 200litre
Motor 5kw Siemens Motor
Hydraulic Oil Grades Hydraulic Oil 45
Gear Oil Grade lubricant

3. package and shipping

The machine naked in the container or packing as your required.
Payment: 30% T/T in advance and balance 70% after inspection confirmation before shipment.
Delivery: within 45 working days after receipt of deposit
Guarantee: One year, and we will provide the technical support for the whole life.

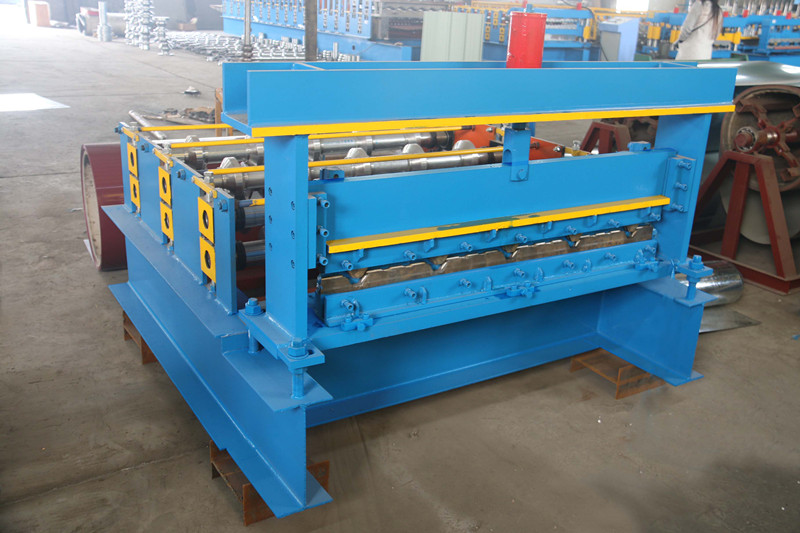

4. Machine Photo

Blue Roofing Sheet Crimping Machine , Automatic Curving Roll Forming Machine

Blue Roofing Sheet Crimping Machine , Automatic Curving Roll Forming Machine
